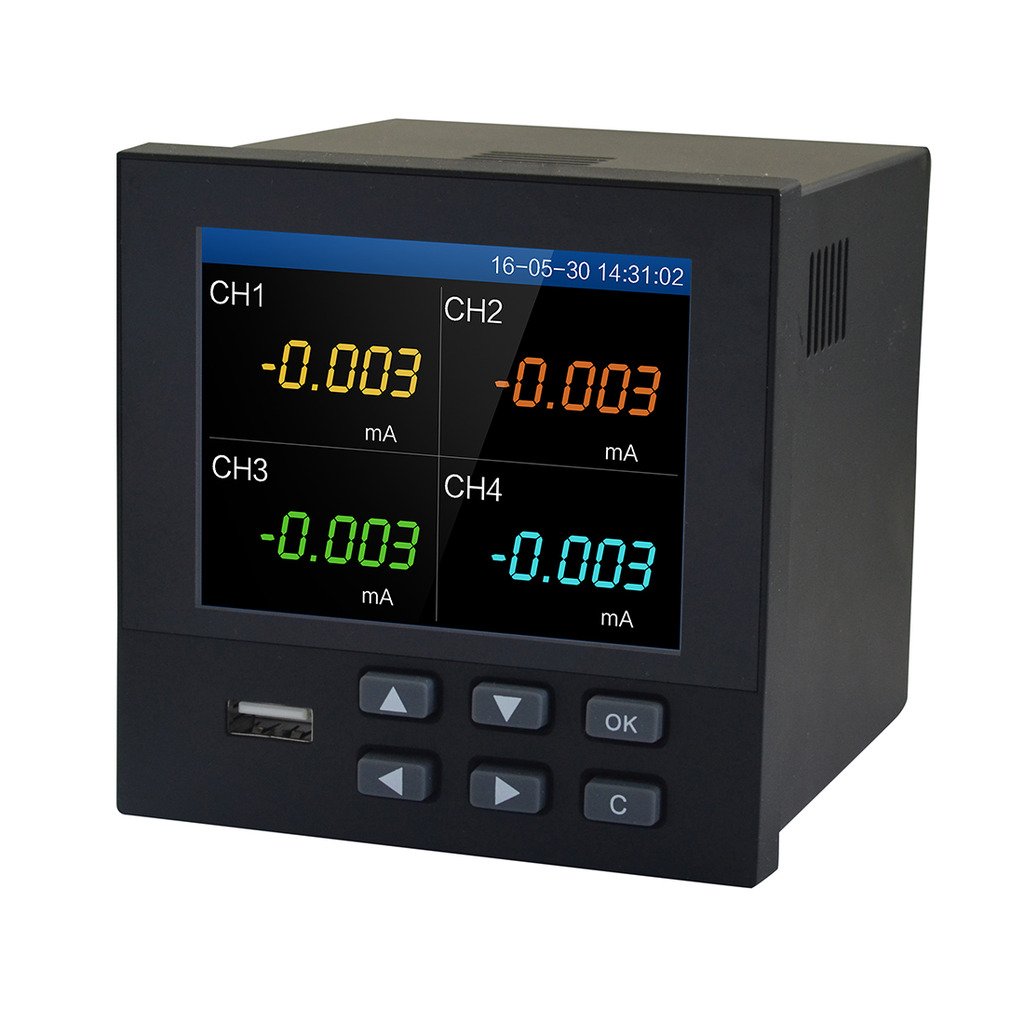

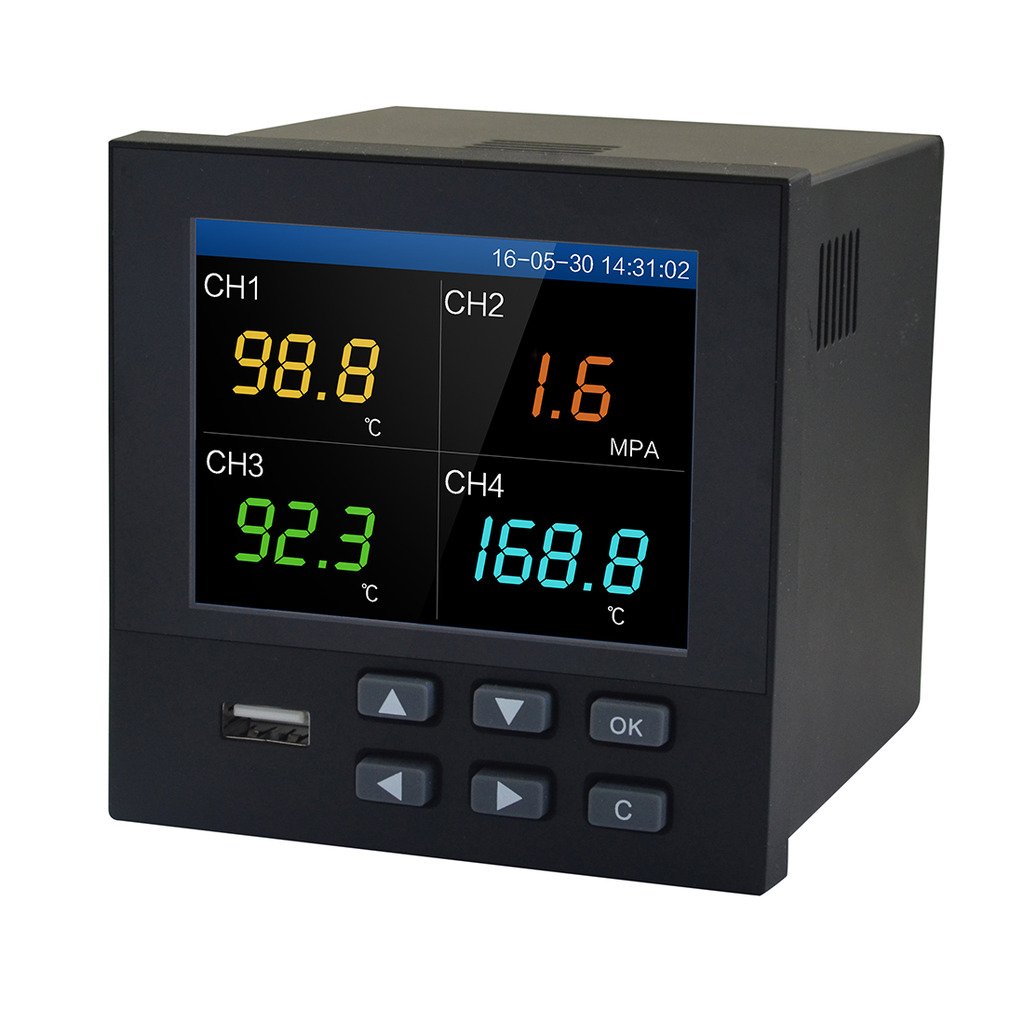

Rhegene 4-Channel Digital Paperless Recorder - Temperature Data Logger DV24 for Industrial Monitoring & Laboratory Use

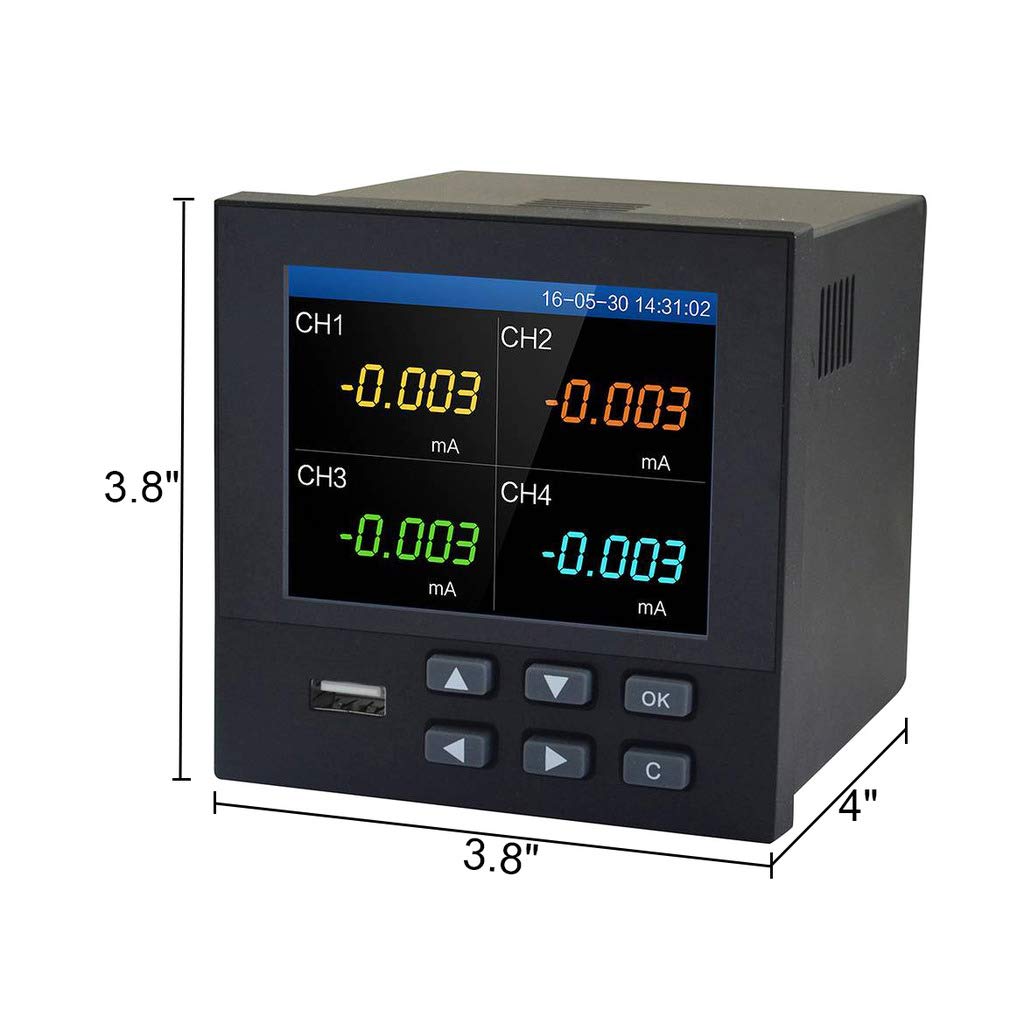

Channel:1-4 Display: 3.5 Inch Color Screen ,320*240 Pixels ,Electric current:0-20mA ,4-20mA Voltage:0-5V,1-5V,0-10V,0-10mV,0-100mV Input signal: thermal resistance :Pt100,Cu50,Cu53,BA1,BA2 Input impedance: standard current signal input 250 ohm Thermocrouple:S,R,B,K,N,E,J,T,F1,F2,WRE5-26,WRE3-25 Analog Output: 4-20mA(load resistance less than 380 ohm) Output signal: Alarm output: up to Four-way relay alarm output (optional)(Note: When the load exceeds the relay contact capacity, please do not directly with the load) Accuracy:0.2%FS+-1d Storage capacity: the internal Flash memory capacity of 48MB(it can be expanded) Power specification :24VDC Recording Interval:1s/2s/5s/10s/15s/30s/1m/2m/5m/10m/30m/60m(it can be set) Record time: the shortest record of 8 days Operating environment :Ambient temperature :-10-50'C ;relative humidity :10-90%RH ,isolated from strongly corrosive gas(Note:If the site environment is bad, please leave us a message when order.) Communication output: RS485/RS232 communication interface, configurable baud rate in the range of 1200-57600bps(optional) Operating Power: 24VDC+-10% Size: 160 x 80MM Processor: ARM64 (dual core) Package including : 1x Paperless Recorder

Channel1-4

Display 3.5 Inch Color Screen ,320*240 Pixels ,Electric current0-20mA ,4-20mA Voltage0-5V,1-5V,0-10V,0-10mV,0-100mV

Input signal thermal resistance Pt100,Cu50,Cu53,BA1,BA2

Input impedance standard current signal input 250 ohm

ThermocroupleS,R,B,K,N,E,J,T,F1,F2,WRE5-26,WRE3-25
